Errai mobile complex

Independent video surveillance over large areas

Mobile complex Errai allows to deploy an autonomous district or townwide video surveillance system within few hours and then scale it down quickly and transport to another location.

Errai Mobile Complex trailer

Cloud technology based on AirMax

The coverage range of the system is 5 kilometers and can be expanded with additional equipment. In the coverage area of the system, you can use telephones and tablets to manage the entire complex. The system creates a self-managing cloud with distributed storage and autonomous data transfer.

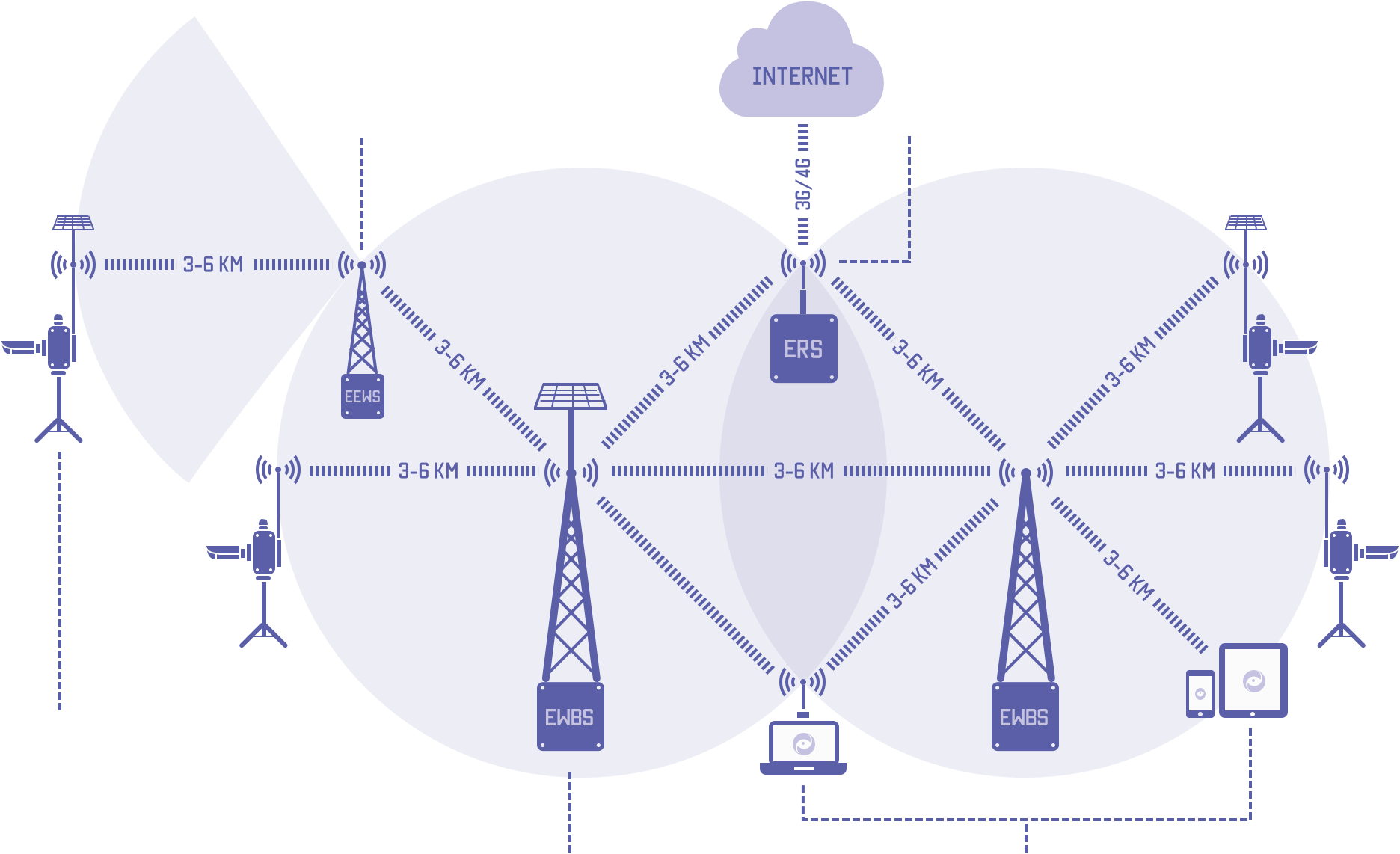

Errai Mobile Complex scheme

EEWS

It allowed point wise increase a distance to remote ECS.

ECS

Security camera with self-contained power supply and wireless communication modules.

ERS

It is installed in the coverage area of the complex and records video from all ECS. ERS can broadcast data through the Internet for remote control.

EWBS

Basic connection points for all devices.

EOP

EOP is mobile surveillance points, phones and tablets. They work either within system coverage zone and remotely via the Internet.

More about components

Errai Camera Station (ECS)

is a security camera with self-contained power supply and wireless communication modules.

has AirMax system of wireless data transmission at frequencies from 2.4 to 10GHz;

is equipped with on-board video archiving system for 128 hours, with the possibility of continuous recording and backup duplication;

has autonomous power for 24 hours with the support of hot battery replacement and, optionally, installed solar panels;

has autonomous power for 24 hours with the support of hot battery replacement and, optionally, installed solar panels;

ECS

Errai Record Station (ERS)

is installed within the coverage area of the complex and records video from all ECS. It can broadcast data through the Internet for remote control.

has AirMax system of wireless data transmission at frequencies from 2.4 to 10GHz and built-in GSM LTE modem;

is equipped with onboard video archiving system for 40 000 hours, for all cameras of the complex;

is equipped with a diesel generator for 220V or solar panels. It has a built-in battery system for 6 hours with on option to hot-swap batteries;

is delivered in the form of a trailer with a mast and elements for quick start of the system.

ERS

Errai Wireless Base Station (EWBS)

The main communication points for all devices that create an autonomous wireless network within the complex.

has AirMax system of wireless data transmission at frequencies from 2.4 to 10GH. The package includes 120 ° directional long-range antenna and 360 ° directional short-range antenna with an access point of 5.7 GHz 600 mW.

can operate up to 4 ECS or ERS stations simultaneously.

has autonomous power for 24 hours with the support of hot battery replacement and, optionally, installed solar panels;

is supplied as a ready to use station with a light mast and elements for rapid deployment on the roofs of buildings.

EWBS

Errai Extending Wireless Station (EEWS)

Allows pointwise increase a distance on 3-4 km to remote ECS.

has AirMax system of wireless data transmission at frequencies from 2.4 to 10GH. The package includes 120 ° directional long-range antenna and 360 ° directional short-range antenna with an access point of 5.7 GHz 600 mW.

can operate 2 ECS or ERS simultaneously;

has autonomous power for 24 hours with the support of hot battery replacement and, optionally, installed solar panels;

is supplied as a ready to use station with a light mast and elements for rapid deployment on the roofs of buildings.

Errai Observation Point (EOP)

Protected laptop with pre-installed software to manage the entire complex.

connects to the network anywhere in the complex via WiFi or remotely via GSM LTE;

has AirMax system of wireless data transmission at frequencies from 2.4 to 10GHz and built-in GSM LTE modem;

has a self-contained power supply for 24 hours with the support of hot-swap batteries and with the ability to connect to 220V.

EOP
